Meat Slicer DIYFebruary 22, 2020 farcyde
DIY ProjectsKnife making

I watched a very inspiring YouTube Video lately from a guy who made himself a meat slicer. Now, since I’m rather productive making bacon, dried meat or sausages every so often, I decided that I wanted one of these too! Mine is not as sophisticated as his (he is definitely “carpentry level: god”), but it works and I’m proud!

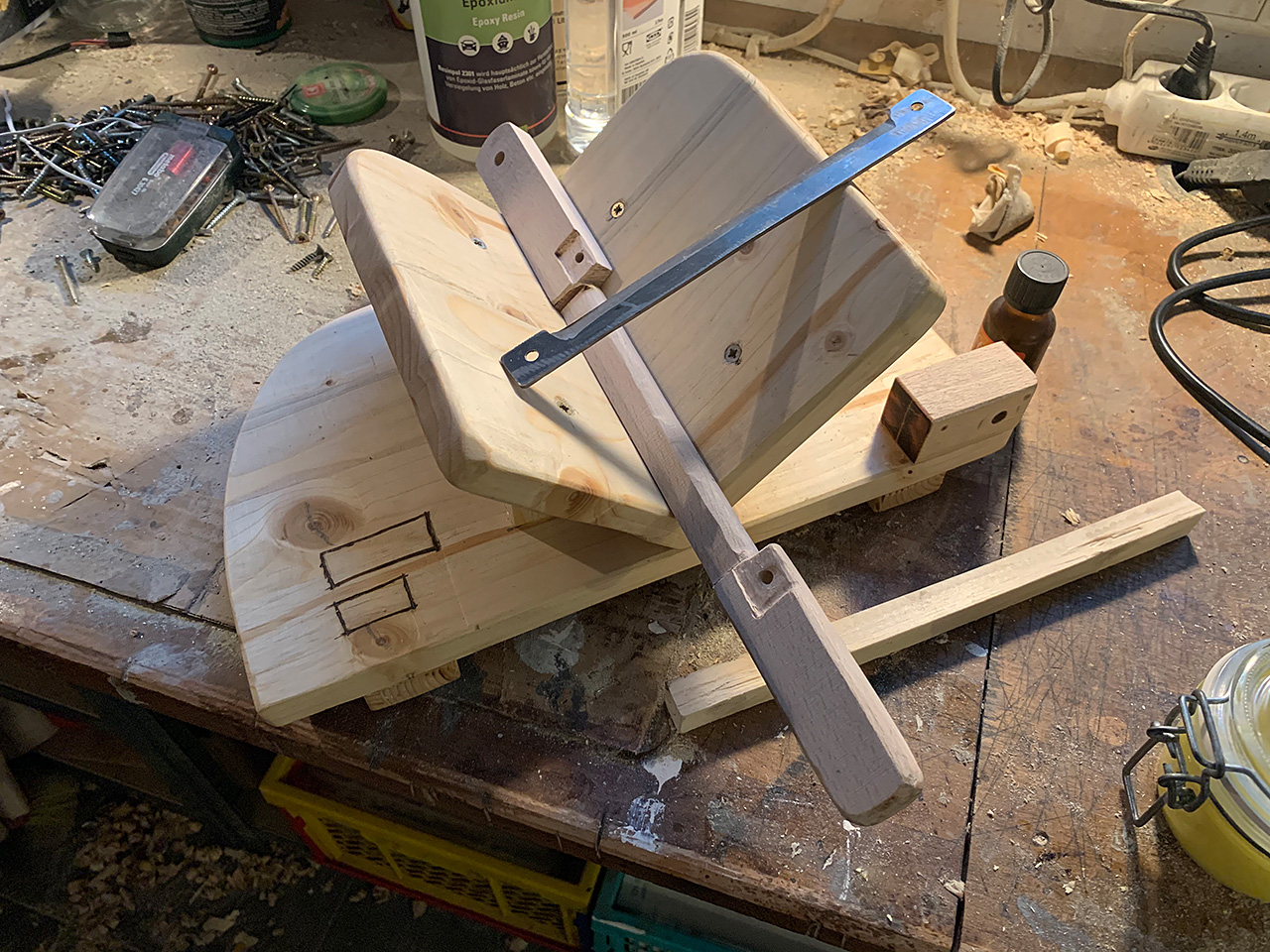

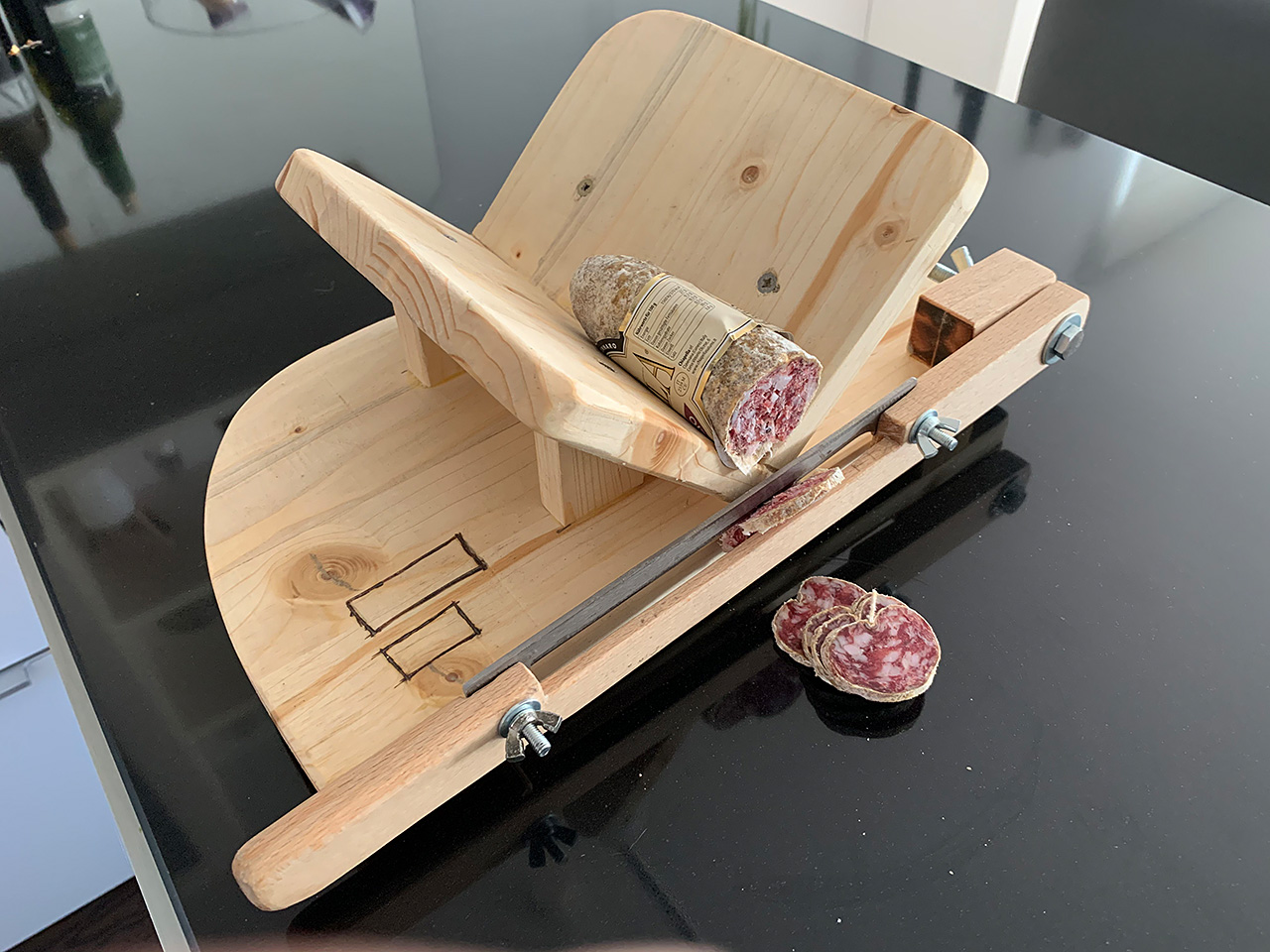

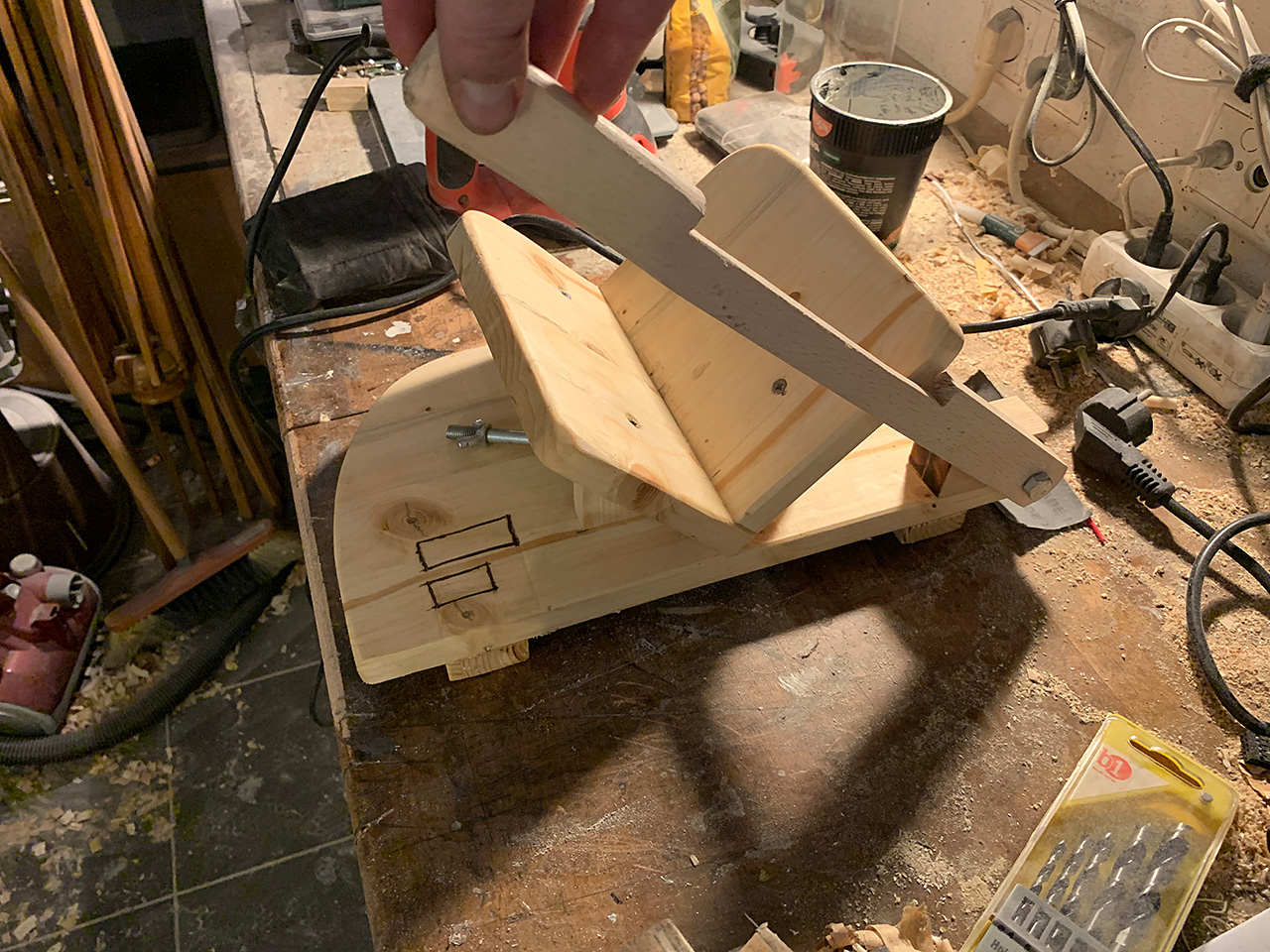

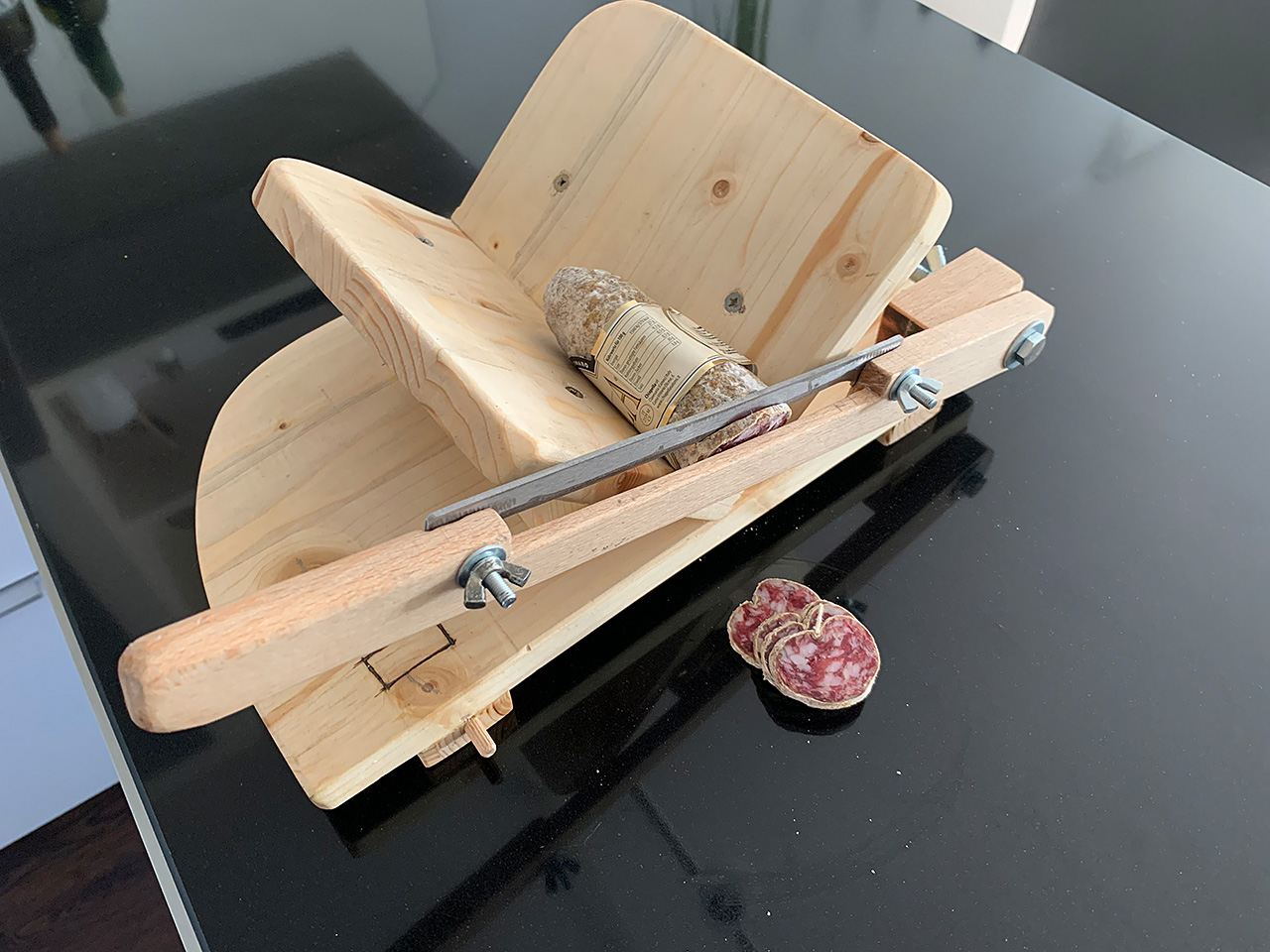

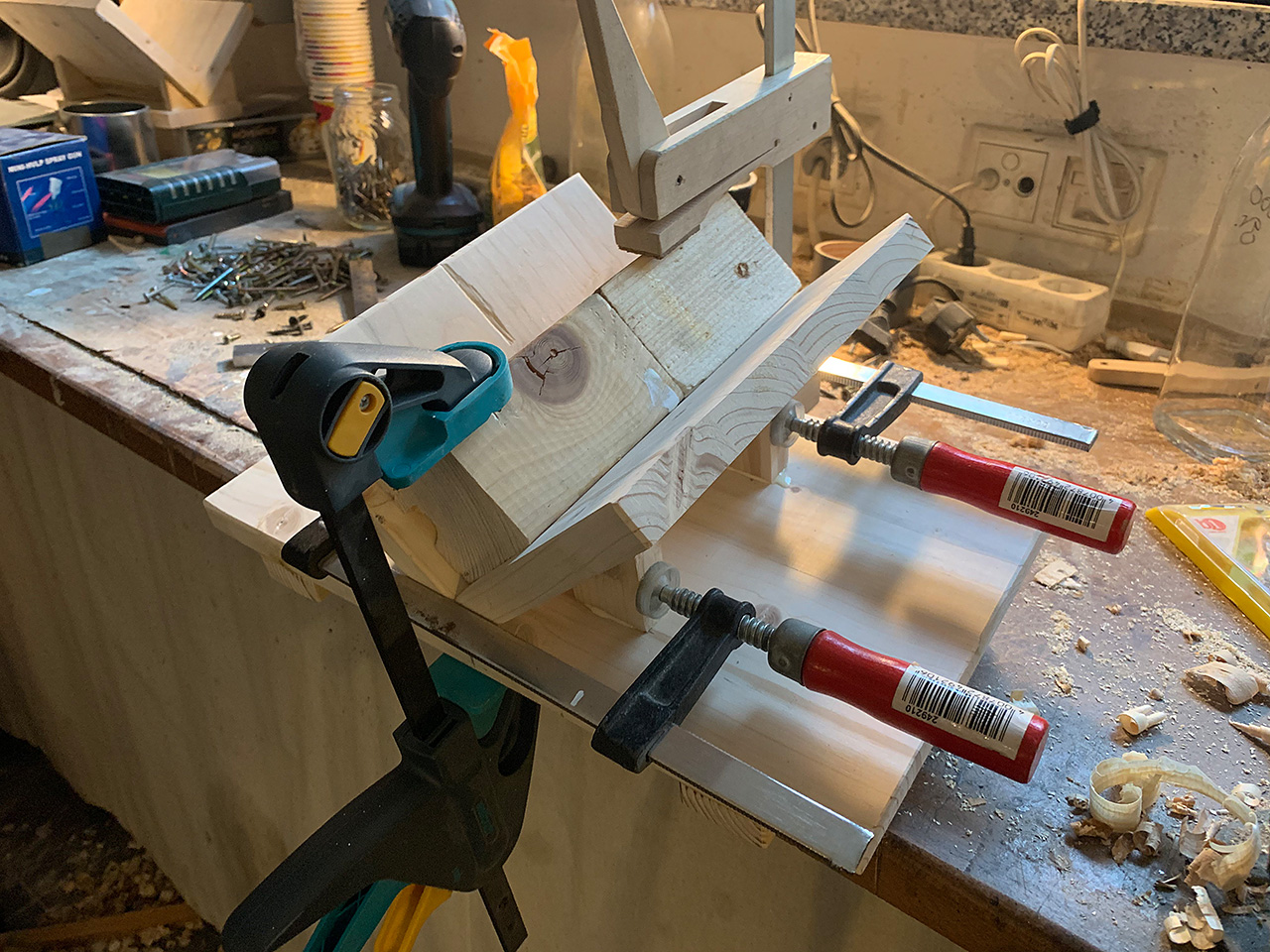

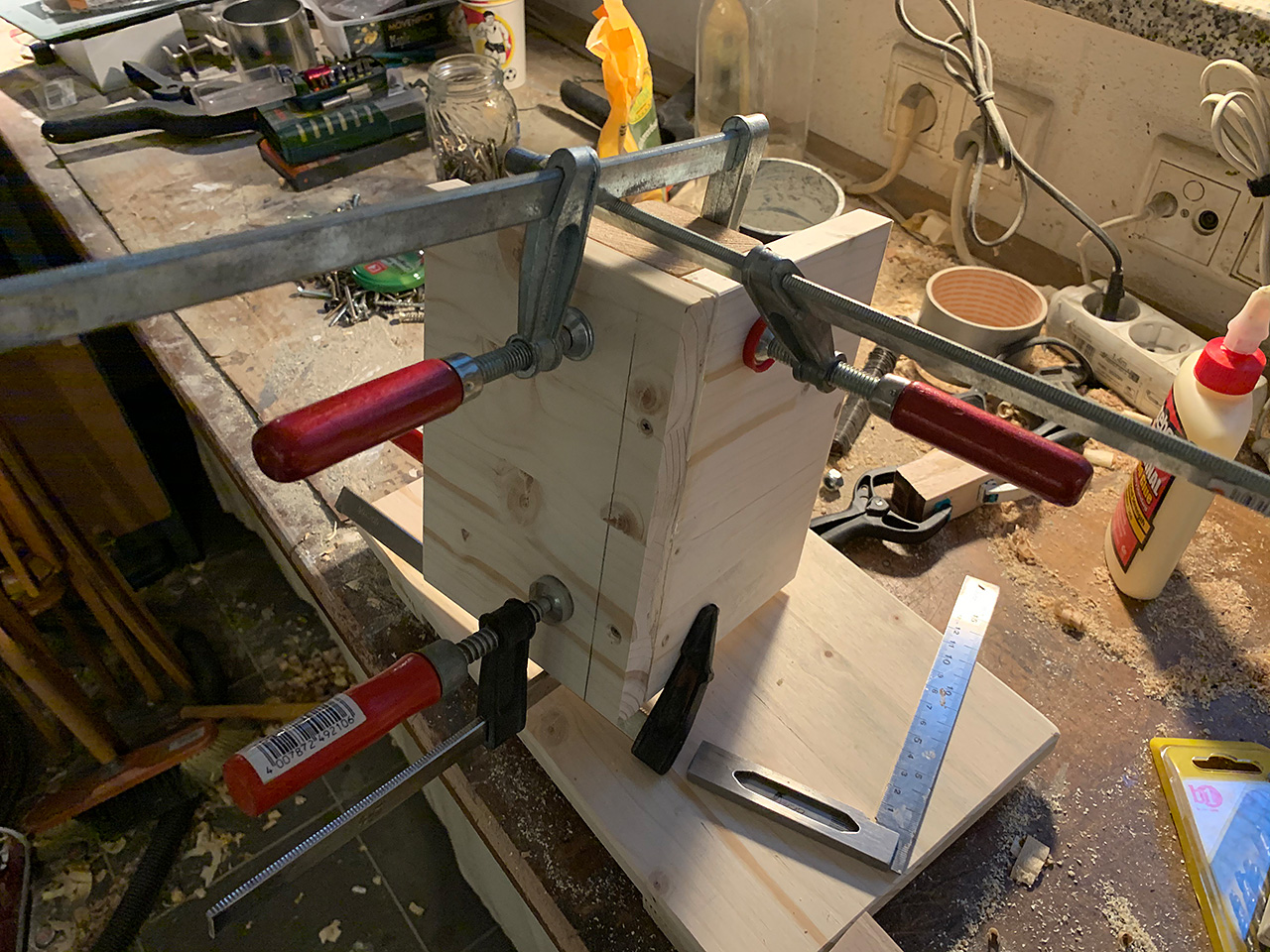

It’s made from ordinary sprucewood from the hardware store (16 mm) and consists of a v-shaped holding tray and a slicer arm with a custom cutting blade. The whole thing is finished with an oil/wax polish and the cutting arm is removable and can be disassembled for easy cleaning. If you want, you can see the plans below and build your own.



Measurements

Measurements

Materials:

– Sheet of spruce wood, 200 x 600 x 16 mm
– Two each: Bolts M4 x 20, washers and wing nuts
– One bolt M8 x 70, three washers, wing nut
– Strip of knife grade steel for the blade, 200 x 20 mm
– Small stuff: Wood glue, some wood screws, finishing wax, etc.
